MuteBoard 4

£59.00 (Excluding VAT)

£70.80 (Including VAT)

Quantity Price per Unit
1 - 10 £59.00
11 - 25 £57.23
26+ £55.46

Why Choose MuteBoard 4

Dimensions: 1200mm x 1200mm x 29mm.

Weight: 41kg

Compliance: Compliant with Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*

Installation: 9 fixings for each MuteBoard™ 4 (fixings not included).

Where: wall applications of metal, wooden, brick and concrete structures.

A four-ply acoustic board for wall soundproofing, its application is perfect for rooms that are limited in available space, learn more about MuteBoard™ 4 below.


Specialist Soundproof Plasterboard for Part E Building Regulations Compliance

In noise polluted homes or workplaces it is important to find practical ways to help address the many different problems, it is possible to achieve a peaceful environment with the right solution in place, although you may also be looking for something that is suited for tightly spaced environments.

MuteBoard™ 4 is slim, practical and high in acoustic performance, and this means that you can use it from anything for the reduction of the common household noises when applied directly to brick, block or stud frames, or even elevated noise issues that can range from clearly heard conversation to electronics in operation when installing on to an isolated stud frame. To achieve the best possible solution for soundproofing, you will need to incorporate them into what is called 'Systems', and it is here you will find MuteBoard™ 4 in a range of options. These offer ways of increasing acoustic performance by fitting them to decoupled stud frames, internal stud frames to split multiple rooms, or when you need to be conservative with space - directly installing them to your brick/block wall.

Information

  • 1200mm x 1200mm x 27mm.
  • A hand-made product that may require trimming off excess.
  • For improving issues with airborne noise on the walls only.
  • Application to both concrete and timber structures.
  • Easy to apply a plaster skim layer directly.
  • Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland) and Building Standards Technical Handbook 2017 for Scotland for impact transmission.*

Noise is subjective, and this means that what could be a problematic noise for you, is not for others, and the level of disruption will depend on what level of sensitivity you have to a specific sound or event. Acoustic issues differ for homes or workplaces, but it is our MuteBoard™ 4 that offers flexibility across your requirements for performance, cost and thickness.

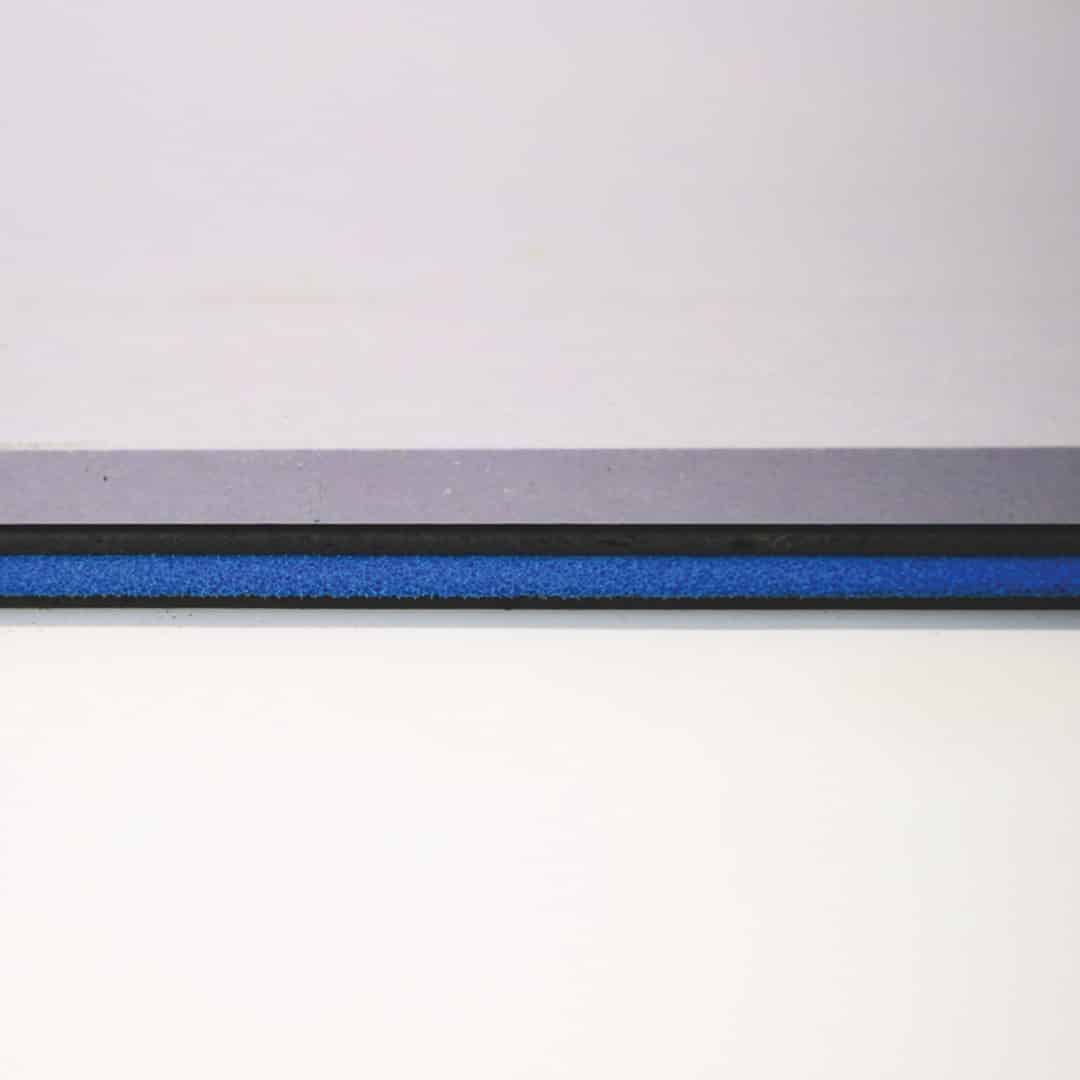

Our most dense and highest performing of the MuteBoard™ range is our MuteBoard™ 4, it is a four-ply soundproof material, that comprises of two layers of Mass Loaded Vinyl at both two and four millimetres, each provides a level of damping, this means that due to its flexible mass it will help to break down vibration energy positively from rigid materials. Bonded between the mass layers is a six-millimetre closed cell foam, this helps to provide a degree of decoupling from the structure. We bond these mattings to soundproof plasterboard which is then ready for skim and plastering. You will find Acoustic Plasterboard throughout the soundproofing world, and we incorporate this into many of our acoustic systems and products, and it is its increased mass over standard plasterboard that makes it more efficient.

MuteBoard™ 4 is part of the MuteRange core - these products are subjected to stringent testing in both laboratory and real-world environments providing the best possible solution for the purpose with a result you can trust.

You can find out more about our all-encompassing MuteRange by clicking on the icon below if you are interested in stocking or specifying our range for projects now and in the future, get in contact with us!


I am looking for a soundproof material that can be installed directly to a brick or block wall, is this possible with MuteBoard™ 4?

MuteBoard™ 4 is our best performing single acoustic panel that can be installed directly to brick and block walls, or you can also fit them to a new existing or new stud framing of both metal and timber.

Each board requires multiple fixings per board and is an excellent space-saving method for soundproofing against low to mid-level noises in the home or for sound proofing an office to where airborne noise is an issue, and this includes medium level conversations and or light television use. You can improve this by installing on to a new stud frame fixed away from the existing partition and installing acoustic mineral wool in the newly created cavity. You can find all systems MuteBoard™ 4 is featured in by clicking on the systems tab next to the FAQs here.

Can I install MuteBoard™ 4 as a ceiling soundproofing solution?

MuteBoard™ 4 cannot be used to soundproof a ceiling, and the blue cross-linked foam is not suitable for a ceiling installation where fire regulations are concerned, we have a range of high performing ceiling soundproofing products to suit different requirements, you can learn more here.

Do you recommend installing any additional soundproofing materials with MuteBoard™ 4?

You can apply MuteBoard™ 4 in a variety of different ways to help improve the acoustic performance, but it is always recommended to use acoustic mineral wool between any adjacent cavities to reduce ‘flanking transmission’ which can affect the overall performance. Sound will always find its way to an open cavity if a clear path permits it, going around the MuteBoard™ 4 and appearing in one of these cavities.

Can I adhere MuteBoard™ 4 to the wall without screws?

MuteBoard™ 4 is a hand laminated product which uses a tack adhesive to bond materials together; it is not suitable for installation with an adhesive as the mass would pull apart the tack, we only mechanical fixings with MuteBoard™ 4.

Can Mute Board™ 4 be used to soundproof a floor?

Mute Board™ 4 cannot be installed on the floor as the acoustic plasterboard may suffer from cracking under pressure and will not help to accommodate any fluctuation in joist height, again leading to possible breaking of materials. We have a whole range of floor soundproofing solutions which you can view here.

What fixings should I use to install MuteBoard™ 4 and are they included?

Our guidance recommends the use of Nylon HammerFix 80mm when applying to brick and block walls, additional advice from a structural engineer of professional equal would be best sought with if there are any concerns, we do supply these fixings but are not included with the purchase of MuteBoard™ 4.

Can MuteBoard™ 4 be used to reduce reverberation in a room?

Reverberation is an issue that affects sound internally and is not related to sound proofing in the sense that it requires something dense to reduce noise moving from room-to-room - it is about improving the sound in a single space. A sports hall would be a classic example of reverberation when somebody speaks they will attempt to shout over the noise, and as the clashing of sound bounces off the hard and reflective surface, this leads to the speech becoming unintelligible. MuteBoard™ 4 is a dense product that will reflect the sound and will not work against treating this issue, for this, we offer a range of sound absorption materials to help with this issue in a wide range of applications including at home, in the office or hospitality environments including restaurants, nightclubs and cafés.

Can I fit anything through MuteBoard™ 4?

Fixing materials through the MuteBoard™ 4 creates a direct path for the sound to travel back through and could crack the plasterboard in a way that makes it a less effective sound proofing system. With light fixtures and plug fixtures, we would recommend where possible to relocate them to another wall with the advice of a registered electrician under Part P of the Building Regulations to ensure the most effective sound proofing. MuteBoard™ 4 has a lining applied over the top ready for skim and plastering. We would recommend the skim plaster layer applied before any decoration as it can be highly absorbent and will help to reduce small air gaps in the system. We recommend the use of Acoustic Socket Box Inserts anywhere you need to install sockets.

Can MuteBoard™ 4 be installed to soundproof bathrooms and wet rooms?

MuteBoard™ 4 can be installed used for soundproofing wet rooms and bathrooms but would require the addition of a moisture board to stop direct moisture coming into contact with the acoustic plasterboard and causing possible damage to the material.

Seek advice from a Damp or Bathroom fitting specialist before purchasing; we can work with such specialists to ensure the right combination of both sound proofing and damp proof materials are applied. The Cross-Linked PE Foam in the MuteBoard™ 4 does not absorb moisture, nor is it prone to fungal or other damp related issues that affect chip foam.

All of our MuteBoard™ series are handmade at our warehouse and with this, there may be some slight overhang - this can easily be trimmed with a Stanley knife to make sure the MuteBoard™ butt up together tightly.

You will want to make sure that the surface you are applying to is flat to avoid any joints unsuccessfully matching up. A rendering of walls will help to not only create a level wall but to patch up significant gaps in the mortar and create a stronger surface to apply MuteBoard™ 4.

When affixing MuteBoard™ 4, you will want to use heavy duty fixings with 9 per board and remember to leave a 2-5mm gap from the adjacent surfaces.

Fix MuteBoard™ 4 with tapered edge vertically.

Fill all gaps, including the abutting of all joints and around the perimeter. The aim to make sure the surface is as airtight as possible as you are trying to reduce airflow that airborne noise transfers through, even the smallest of gaps.
